Create user actions to: switch screen, change data, make API call

Assign any platform actions to any app user actions:

______________________________________________

1. Open any app you have

2. Add Button, Image or Link element to an app screen

3. Click on it on the screen

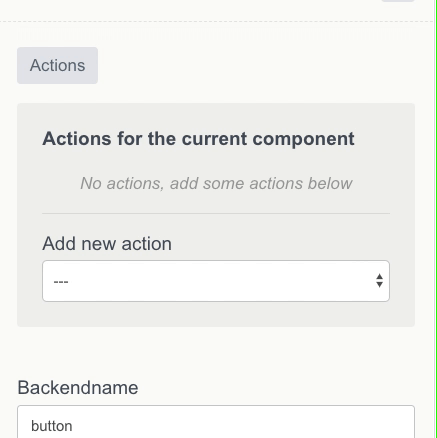

4. Click Actions button on the right hand side

5. Select the necessary action from Add new action dropdown.

____________________________

1. Mouse over any of User screens on the bottom of Constructor

2. Select Edit screen settings by clicking the pen​

3. Click Actions button on the right hand side on Constructor screen

4. Select the necessary action from Add new action dropdown.

__________________________________________

In this example we create Text Input and Button which saves the data from the text input to Event.​

How to set it up:

1. Open any app you have and click Add screen

2. Drag and drop Text Input element, set properties:

   • Backendname = Email

   • Placeholder = Enter your Email

3. Drag and drop another Text Input element, set properties:

   • Backendname = Question

   • Placeholder = Enter your question

4. Add Button element to app screen, set properties:

   • Backendname = Contact

   • Caption Button = Contact me

5. Click Actions button on the right hand side

6. Select Create Event from Actions dropdown

7. Name the action as Contact Action

8. In Data table click Add item and set:

   • Key = Email

   • Value = #Backendname:Email#

9. Click Add Item and add another pair:

   • Key = Question

   • Value = #Backendname:Question#

1. Click Save

2. Click Save Screen

3. Click Preview to launch the app from the current screen

4. Fill in Text Input and submit the data

5. Get back to Constructor

6. Check the data stored in Events:

   • Click on Backend in the header to get to Events table

   • Click on the row with the last event

   • Check your data in Contact action section.

_____________________________________________________

In this example we create Text input and Button which saves the data from text input to Name and Email columns in Objects.

How to set it up:

1. Open any app you have and click Add screen

2. Drag and drop Text Input elements, set properties:

   1. Backendname = Name

   2. Backendname = Email

3. Add Button element to app screen, set properties:

   1. Caption button = Send

4. Click Actions button on the right hand side

5. Select Save to Object Column action from Actions dropdown

6. In Data table click Add item and set Column name and Value data:

   1. Name = #Backendname:name#

   2. Email = #Backendname:email#

7. Click Save

8. Click Save Screen

9. Click Preview to launch the app from the current screen

10. Fill in Text Input and submit the data

11.Get back to Constructor

12. Click Objects in the header to check the data stored in Object table.

______________________________________________

1. Pick Execute Operations from Add new action dropdown list

2. Pick an existing оperation from Add operation drop down list.

3. Click Save

4. Click Save Screen.

​​

______________________________________________

Variables store temporary data which can be used in other parts of the platform via Hashtags links.

1. Drag and drop Button element to any screen you have

2. Click Actions button on the right hand side

3. Pick Set variable from Add new action dropdown list

4. Click Add item under the Variables label

5. Name your variable

6. Use any combination of Hashtag link to set the variable's value

7. Add as many Name/Value pairs as you need. Add Item button will appear each time you add and fill in Name/Value fields.

8. Click Save

9. Click Save Screen.

Please, check Variables article for more info.
